商品描述

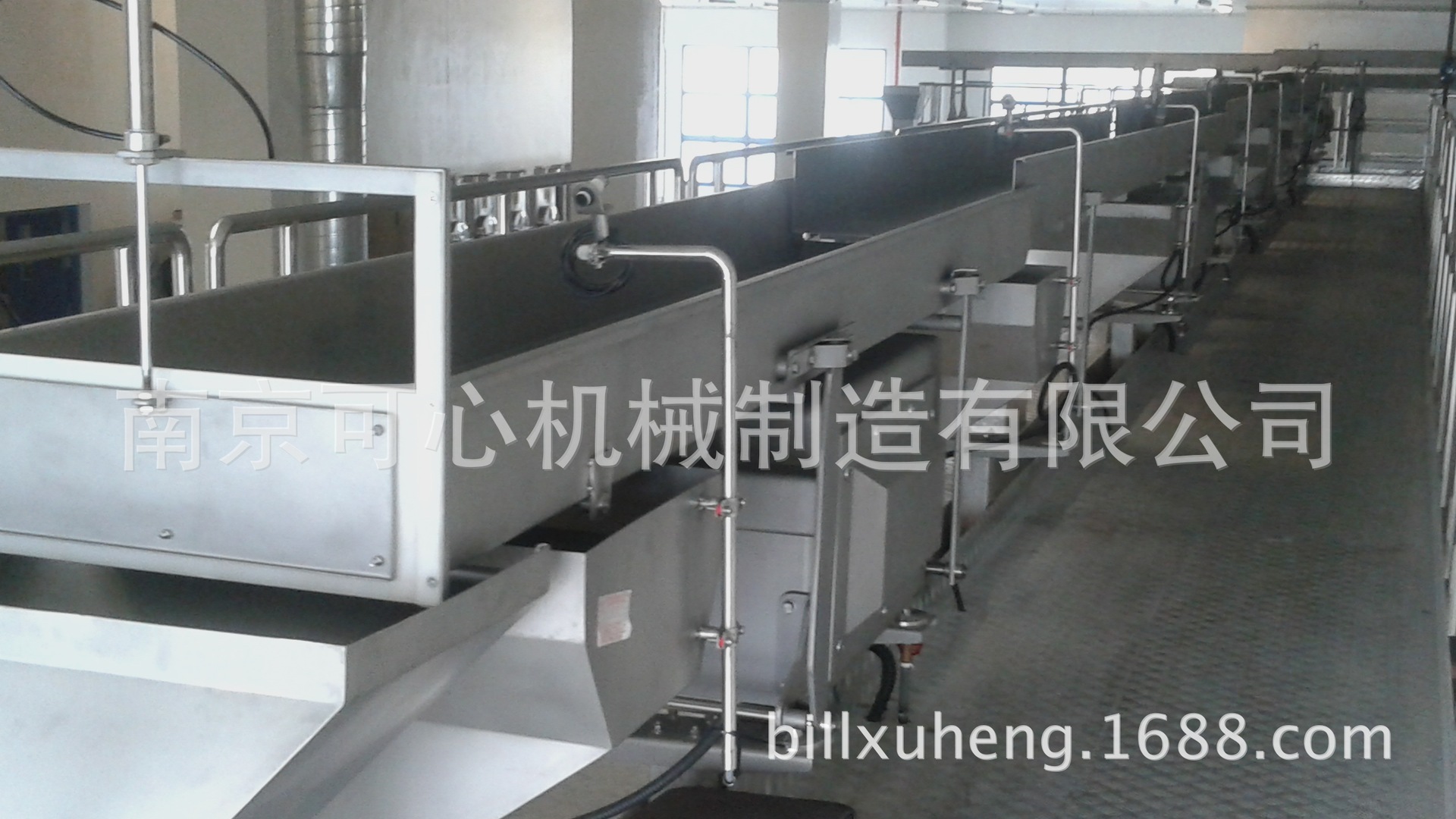

快速后退式水平物料輸送機 KH250
南京可心機械的快速后退式水平物料輸送機的問世，它提供一個清潔，柔和的產品輸送環境，快速可靠地輸送難以處理的產品，如油炸食品、糕點、餅干、糖果、沙琪瑪、茶葉、奶粉、顆粒食品等等。結束了以往產品輸送過程中一些需要封閉空間，調味料損失，粘連的現象，無需因清潔而計劃外停車。采用偏心輪反沖機構驅動器、消除凸輪機構的死點，節能、通用、穩定、無震動，可以重復使用，5年內無需維修。廣泛應用于食品，醫藥，化工等包裝分配系統。
Fastback Horizontal Motion Conveyor of Nanjing Kexin Machinery Co.,Ltd，one revolution in the conveying industry,provides a clean and gentle conveying environment and conveys hard-to handle products fast and reliably such as fried food,pastry,biscuit,candy, Sachima,tea,milk powder, particulate food products and so on. It ends some phenomenons during conveying process such as needs of enclosure space ,loss and adhesion of seasoning. It eliminates unscheduled downtime for sanitation.It adopts the wobbler recoil structure driver which can eliminate the dead point of the cam mechanism and has the features of energy-efficient,versatile,stable ,vibration-free and reusable .No need of maintenance within 5 years.It is widely applied in food,pharmaceutical and chemical packing and distribution systems.
特點
1. KH750水平物料輸送機可輸送其它類型輸送機不能達到重量和其他的效果慢速向前快速向后的遠動方式使產品達到最柔和的傳送
2輸送槽易清潔，產品表面調味料涂層不會被粘連無衛生死角
3無需沉入地下的地角，輸送能力能達到27噸/小時，這種輸送產品的方式之前僅有彈性振蕩式輸送機才有的，但750速度更快，效率更高。
4產品在輸送槽中有各自規律地向前滑動，不相互碰撞，無破損，不粘連，因次適宜輸送極易破碎的和表面附著調味料的產品，性能優于振動式輸送機
5固特異同步輪模塊化驅動幾乎沒有其它結束接觸遠動部件，無需防護及維修，快速更換驅動單元和電機
6 KH750最快輸送速度12米/分鐘，運行噪音低于70分貝,符合有關運行標準。
7輸送槽可根據需要做成各種形式，輸送槽可制成后部半圓筒而前部是旋轉圓筒的形狀，該機型適用于調味料裹涂及比例門分配系統、適合輸送粉料的管狀，做成多流道，多個下料分配口，做成儲料倉形式等等。
8人性化設計，所有零部件采用ISO標準，打破國外同類產品的技術及備件的壟斷，便于維護。
9根據客戶需求提供正反驅動結構，可獲得正反方向的檢修門，適用于不同要求的維護空間，彌補了國外產品單側維護門的不足，同一臺機可實現正反方向的輸送。
參數表Features：
1．KH750 Fastback Horizontal Motion Conveyor can reach the weight and other effects that other conveyers can not reach.It takes theslow-forward fast-back motion to create a gentle conveying for the products.
2．Conveying chute is easy to clean. Coatings remain on product and don’t build up .There are no hard-to-clean areas on the drive base.
3．Move over 27 tons/hour without bogging down. High drive accelerations deliver the benefits of horizontal motion conveying for products that previously could only be handled by vibratory conveyors. But 750 is faster and more efficient.
4．Gentle slow –forword fast—back motion safely conveys even the most delicate products with less breakage and coating loss than vibratory conveyors.
5．Synchronizing wheel modular belt drive has few moving parts and requires no preventative maintenance .Quickly replace drive and motor units without removing the pan or top cover
6．KH750 moves products at up to 12 meters/min and operates at lower than 70 decibels,meet related operational standards.
7．Conveying chute is made ino various forms as required. Conveying chute can be made into semi-cylinder shape in the rear and cylinder shape in the front.This type is suitable for seasoning wrapping and Rev-Gate control distribution system.The tubular shape for conveying the powder can be made into multi-channel,multi-laying-off distribution mouth and the storage silo shape.
8．User-friendly design, all parts and components adopt the ISO standard, to break the monopoly of similar foreign products and spare parts, easy to maintain.
9．According to the customer needs to provide the structure of the positive and negative drive, the door for maintenance of positive and negative direction can be gained ,which applies to space maintanence of different requirements , to make up for the lack of unilateral maintenance door of foreign products, the same machine can achieve positive and negative direction of the conveying.
參數表
型號KH750 | 電源 380V 3PH 4HOLE | 機功率 0.75KW | 外部材料 T304 |
主機長901寬501高690（m） | 重量 主機280（kg） | 輸送距離 1.5---13（m） | 輸送槽長度可做成10米 |
Parameter list
Model KH750 | Power supply 380V 3PH 4HOLE | Power 0.75KW | External material T304 |
Main engine length 901width 501height 690（m） | Weight main engine280（kg） | Conveying distance 1.5---13（m） | Conveying chute can be made into `10m |
快速后退式水平物料輸送機 KH250A
Fastback Horizontal Motion Conweyor KH250A
特點
1.KH250水平物料輸送機工作原來及性能等同于KH750，更為緊湊的設計非常適宜組合稱與輸送平臺周圍的空間，強大的輸送量完全滿足任何多頭稱的流量需求。 2輸送能力10噸/小時
3最快輸送速度10米/分鐘，運行噪音低于70分貝,符合有關運行標準。
4采用380V 3PH 0.25kw 60HZ(電源50HZ)電機,單機重量120Kg
5附件變頻器電氣及氣動控制單元傳感器
Features:
1. The working principle and performance ofKH250A Fastback Horizontal Motion Conweyor is the same as that of KH750,more compact design is very suitable for the surrounding space between heads combination weigher and conveying platform and huge conveying capacity can absolutely meet flow requiremnets for any heads combination weigher.
2. Conveying capacity 10 tons/hour.
3. The fastest conveying speed 10m/min,operational noise lower than 70 decibles,meet related operational standards.
4. Adopt380V 3PH 0.25kw 60HZ(power 50HZ)motor,weight for one machine 120kg
5. Attachments:transducer,electric and pneumatic control unit,sensor.
參數表
型號KH250A | 電源 380V 3PH 4HOLE | 機功率 0.25KW | 外部材料 T304 |
主機長586寬420高510（m） | 重量 主機180（kg） | 輸送距離 1.5--3（m） |
Parameter list
Model KH250A | Power supply 380V 3PH 4HOLE | power 0.25KW | External material T304 |
main engine length 586width 420height 510（m） | Weight main engine180（kg） | Conveying distance 1.5--3（m） |
快速后退式水平物料輸送機 KH250B
KH250B是可心機械制造有限公司根據市場需求，在2011年根據KH250A的基礎上設計的又一款新型輸送機，其特點是在原有的使用參數下配置的輸送槽可達到4米，是國外同類的輸送機不能達到的。
KH250B is manufactured byNanjing Kexin Machinery Co.,Ltd.according to the market requirements.In 2011,the new conveyor was designed on the basis of KH250A with the features that the conveying chute can reach 4 m in the original parameters.Similar foreign conveyors can not reach this.
Parameter list
Model KH250B | Power supply 380V 3PH 4HOLE | power 0.25KW | External material T304 |
Main engine length 760 width 420 height 510（m） | weight main engine200（kg） | Conveying distance 1.5--4（m） |
參數表
型號KH250B | 電源 380V 3PH 4HOLE | 機功率 0.25KW | 外部材料 T304 |
主機長760寬420高510（m） | 重量 主機200（kg） | 輸送距離 1.5--4（m） |
